Специфікація
# | Пункт | Параметр | Зауваження | ||
1 | Номінальна ємність | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2V | |||
3 | AC Impedance Resistance(1KHz) | ≤0,5 мОм | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | Температура зарядки | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | Температура скидання | -20°C~55°C | |||
9 | Температура зберігання | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C ~ 35 ° C | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
Вимір | Ширина | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36,7 ± 0,5 мм | |||
14 | High( Total) | 200,5 ± 0,5 мм | |||
15 | High( Subject) | 195,5 ± 0,5 мм | |||
16 | Tabs Distance | 67,0 ± 1,0 мм | |||
17 | Вага акумулятора | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
Застосування
Наш завод

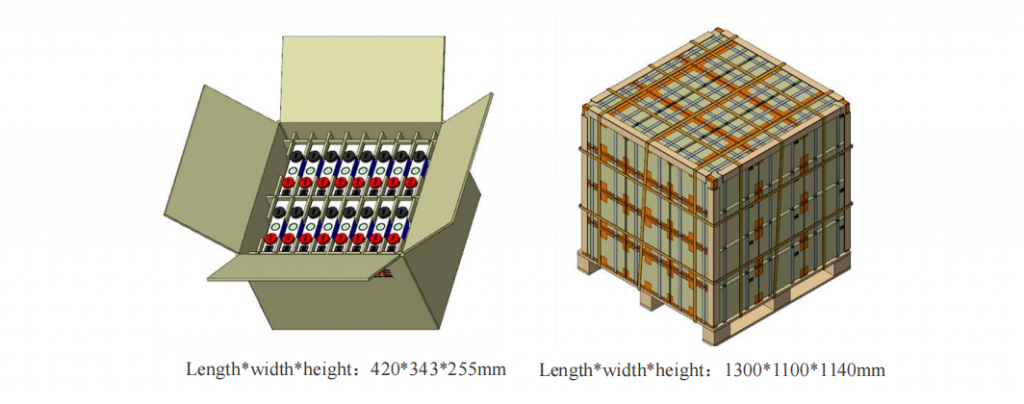

Упаковка та доставка
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
Зберігання
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
FAQ
Q1. Чи можна замовити зразок?
О. Так, ми вітаємо замовлення зразків для тестування та перевірки якості.
Q2. А як щодо часу проведення?
A. Пробі потрібно 3 дні, час масового виробництва - 5-7 тижнів, це залежить від кількості замовлення.
Q3. Чи є у вас обмеження MOQ?
A. Так, ми маємо MOQ для масового виробництва, це залежить від різних номерів деталей. Замовлення зразка 1 ~ 10шт. Доступний низький показник якості, 1 шт. Для перевірки зразків.
Q4. Як ви відвантажуєте товар і скільки часу потрібно, щоб прибути?
A. Як правило, потрібно 5-7 днів, щоб приїхати. Авіакомпанія та морська доставка також необов’язкові.
Q5. Як діяти з замовленням?
A. По-перше, повідомте нам ваші вимоги або заявку. По-друге, ми цитуємо відповідно до ваших вимог або наших пропозицій. Третій замовник підтверджує зразки і вносить депозит для офіційного замовлення. По-четверте, ми організовуємо виробництво.
Q6. Чи добре друкувати мій логотип на виробі?
A. Так. Будь ласка, повідомте нас офіційно перед нашим виробництвом та підтвердіть дизайн спочатку на основі нашого зразка.
Q7.Які у вас сертифікати?
A: Ми маємо CE / FCC / ROHS / UN38.3 / MSDS ... тощо.
Q8.Як гарантія?
A: 3 роки гарантії
